I wanted to explore and deep dive into the Just-In-Time (JIT) compilation and code generation topics. To get some hands-on experience, I was looking for a fun project and came across the Prospero Challenge from Matt Keeter, which was a perfect fit.

The source code for my implementation is available at morazow/prospero-rust.

The challenge is simple, you are given list of ~8k mathematical expressions that must be evaluated for each pixel (x, y) in an image (e.g., 1024x1024 size). The pixel is then colored black or white based on the sign of the final result.

The input is a series of operations that build up the expression:

# Text of a monologue from The Tempest
_0 const 2.95
_1 var-x
_2 const 8.13008
_3 mul _1 _2
_4 add _0 _3
_5 const 3.675
# ...

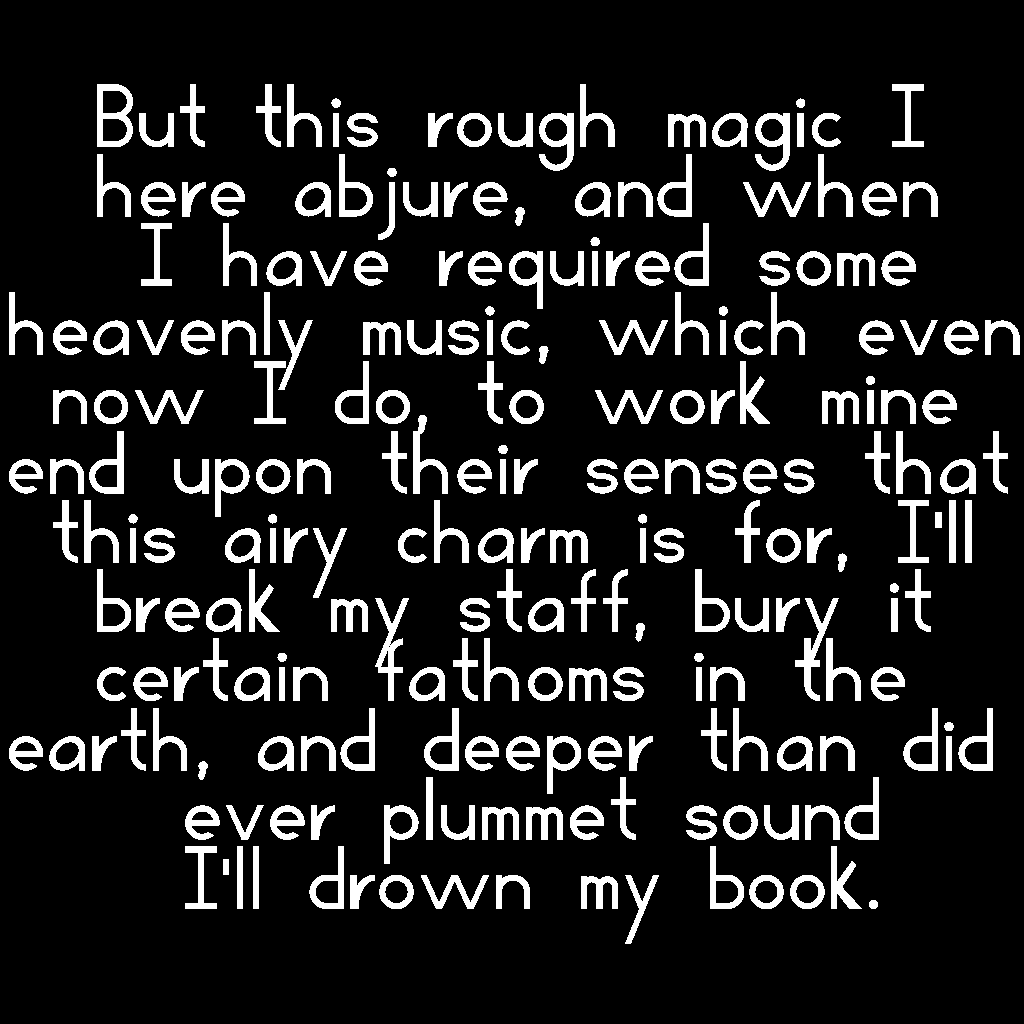

When rendered, these expressions produce an image as following:

Prospero Output

You can read more about the challenge and see solutions from other developers on the Prospero site.

My Approach

Since this was a learning project for me rather than a pure optimization challenge, I took a multi-stage approach, starting with the simplest implementation and progressively adding different JIT backends.

A Baseline Virtual Machine (VM)

I started by implementing a Virtual Machine (VM). This approach is straightforward and served as a baseline for verifying the correctness of the challenge.

JIT with LLVM

For my first Just-In-Time (JIT) compilation backend, I chose the powerful and popular LLVM framework. It is a portable, cross-platform ecosystem with a mature optimization steps. LLVM also provides a rich set of intrinsic functions (e.g., llvm.sqrt.f64 for square roots), which simplifies code generation.

To connect Rust frontend with LLVM, I used the inkwell crate, it helped to generate LLVM Intermediate Representation (IR) from project’s Abstract Syntax Tree (AST).

Low-Level JIT with AsmJit

Next, I wanted to experiment with AsmJit. It’s a lightweight C++ library designed for low-latency machine code generation, supporting X86, X86_64, and AArch64 architectures.

This part of the project required integrating C++ code with Rust. I built a Foreign Function Interface (FFI) bridge that allowed the AsmJit compiler to consume the Rust AST and generate native code.

Conclusion

This was a fun exercise for learning the fundamentals of just-in-time compilation, and progressing from a high-level VM to low-level machine code generation.

A special thanks to Matt Keeter for creating such an inspiring challenge!

Future Work

While I’m happy with the result, there are always more things to explore:

  • AST-level optimizations: Implementing duplicate expression elimination before code generation.
  • AsmJit enhancements: Adding a constant pool for the AsmJit backend (e.g., using a .data section) to reduce code size and improve performance.
  • Parallelism: Parallelizing the image rendering by processing tiles in multiple threads.
  • A C++ version: Re-implementing the project in C++ to avoid FFI in AsmJit and to directly use LLVM C++ API.
